Electronic Schematics

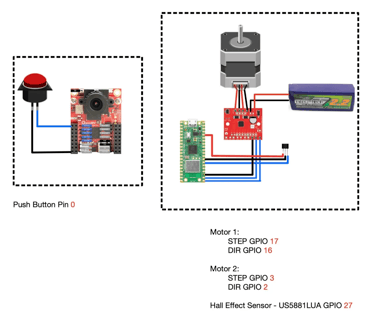

For simplicity, the schematic includes only one stepper motor; however, the project utilized two stepper motors in total.

The OpenMV camera and Raspberry Pi Pico modules are outlined with dashed boxes to indicate their roles. These modules communicate via Bluetooth.

Both controllers are powered by portable USB power banks, which are not depicted in the schematic for clarity.
